Designed a Cellular Communication Module (CCM) that integrates with EDL's Vehicle Control Unit (VCU) to provide remote fleet management capabilities.
Context
In several micromobility and automotive products, fleet management is essential for monitoring vehicle location and preventing anti-theft.
The CCM was developed to add Internet of Things (IoT) capabilities to EDL's VCU, enabling cellular and satellite connectivity for customers requiring remote vehicle monitoring and fleet management.
Key Features
Cellular Connectivity: LTE-M (CAT-1)
Satellite Connectivity: GNSS
Firmware Updates: Over-the-Air & UART Bootloader
Flash Memory: 256 MB
Power Consumption: 0.66 W (low power mode), 1.05 W (normal)
Engineering Design Images

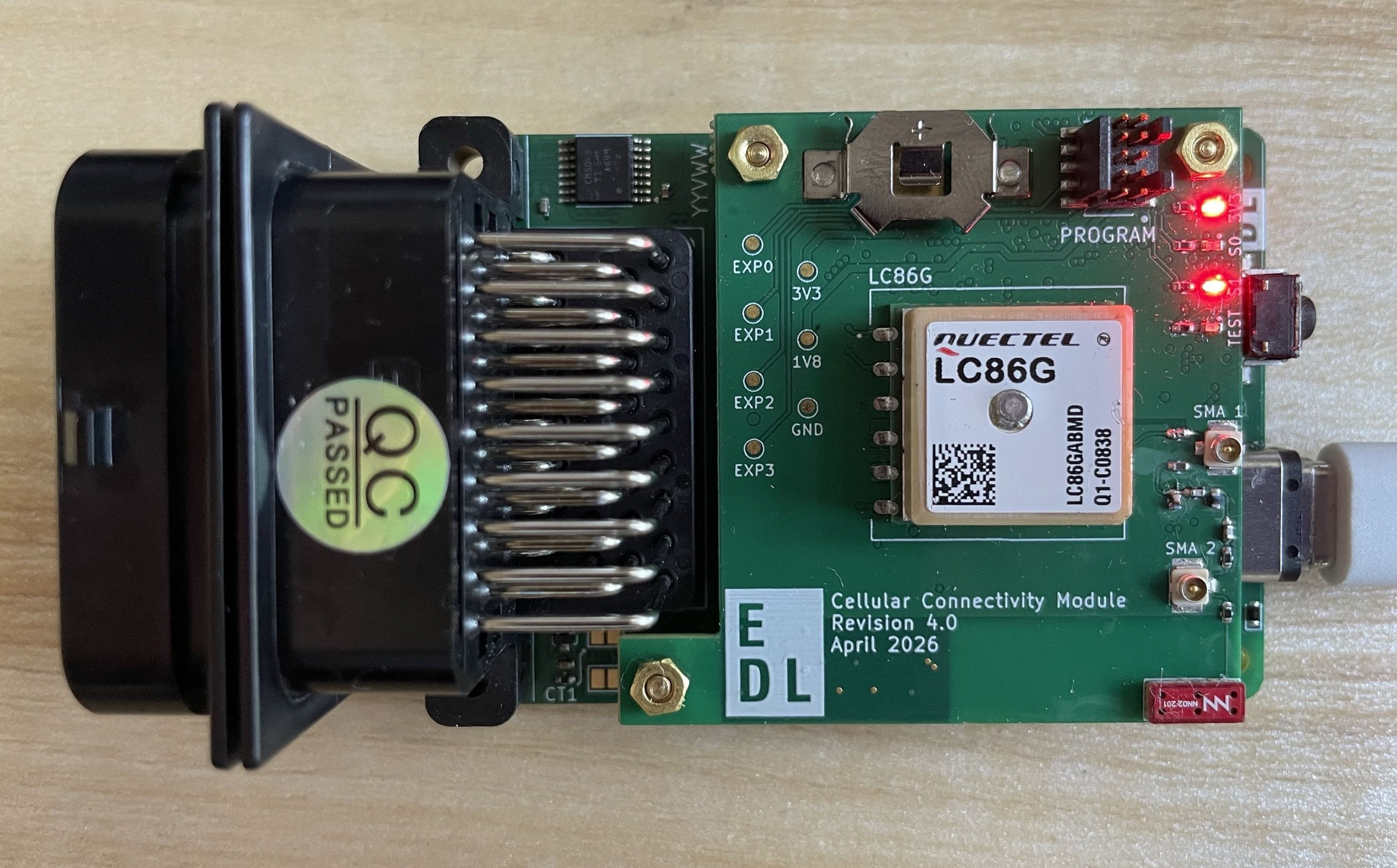

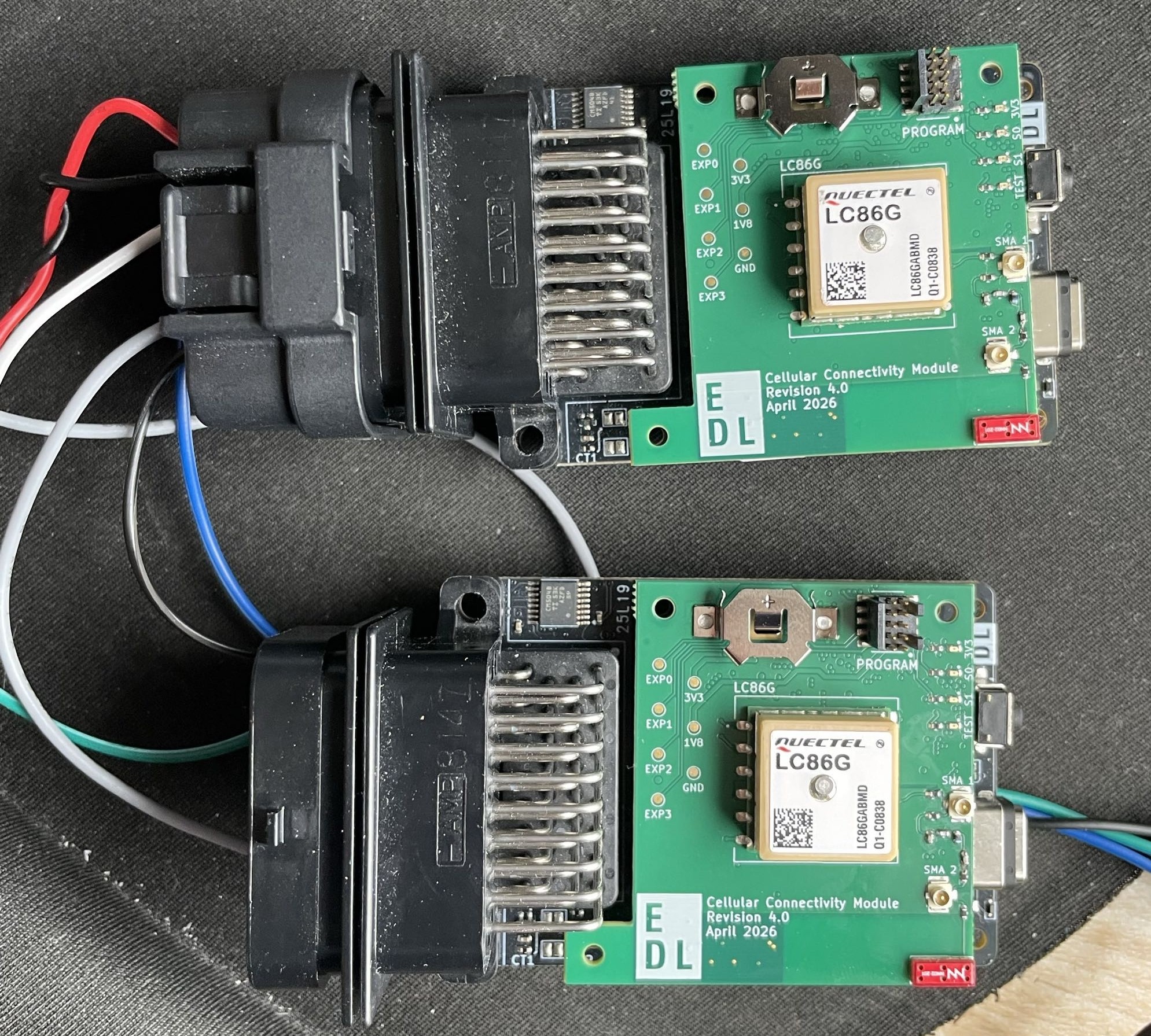

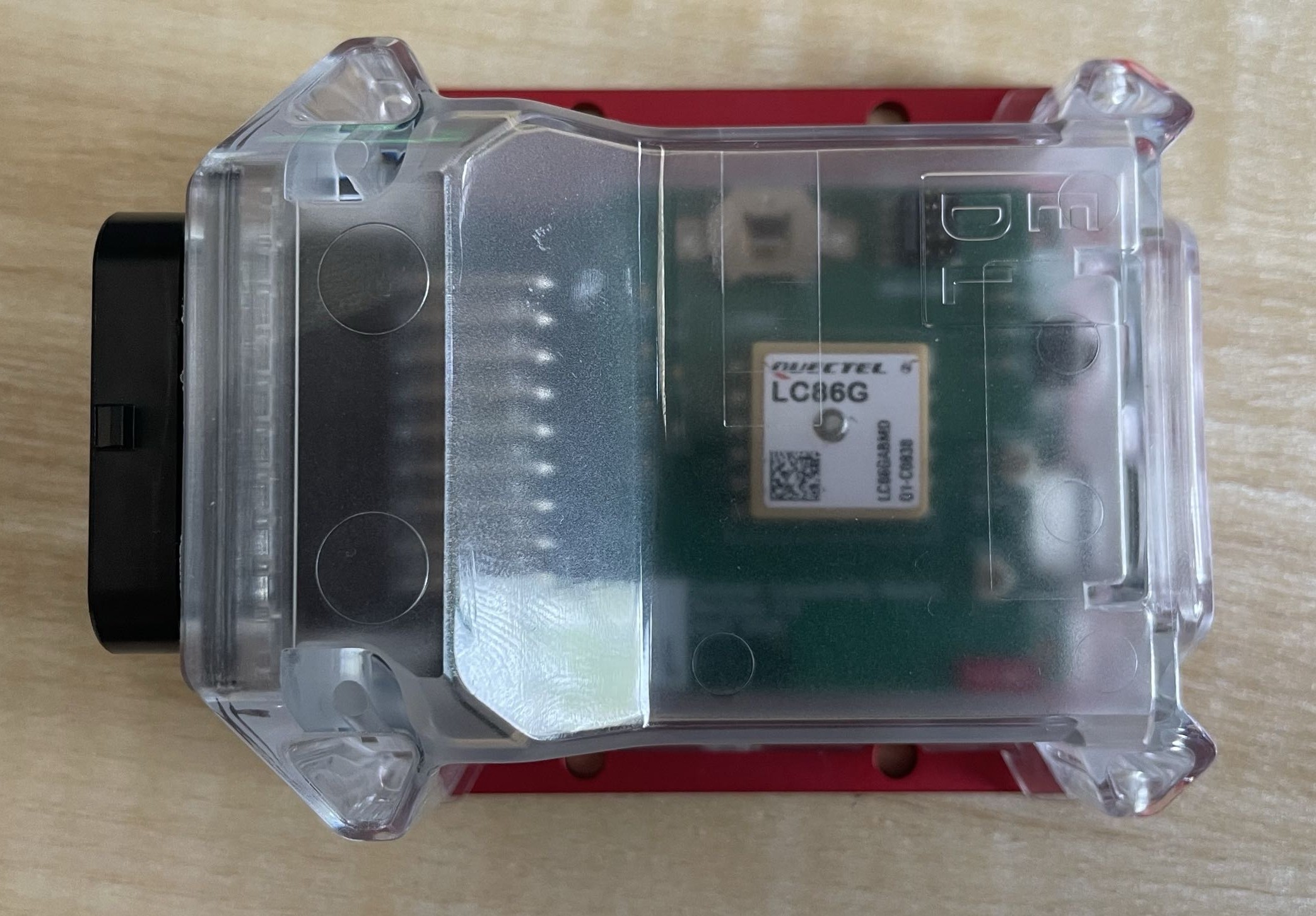

CCM attached to VCU.CCM electrical test.CCM inside VCU enclosure.
